Sizes / fitments18, 20, 24 and 28 mm screw necks; FEA 15 crimp options
MaterialPP / PE pump; stainless or metal-free spring; dip tube
FitsCT and crimp cosmetic bottle necks
Output per strokeMist ~0.1–0.18 ml; treatment ~0.1–0.5 ml; lotion ~0.5–4 ml
Liner / sealNeck gasket; lock-down or clip-lock actuator options
Finish & decorationNatural, colored, metallized or matte shroud; custom actuator
PackingBulk-bagged; pump fitted or supplied separately
Product Knowledge
About the Fine-Mist Sprayers and Treatment Pumps
Background, typical uses and selection points for this product. We can send model drawings, technical data and samples to support your evaluation.
Overview

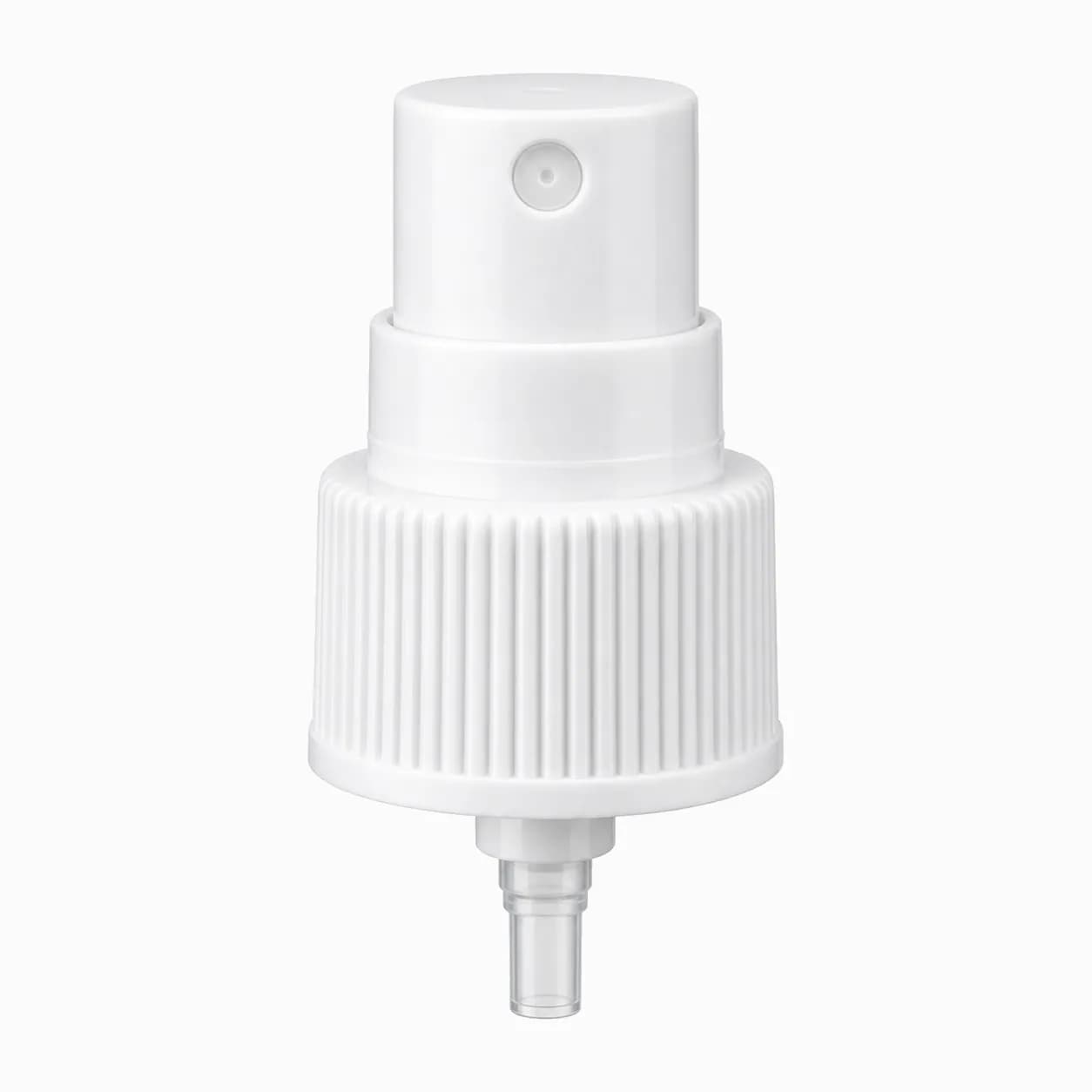

Sprayers and pumps are precision dispensing mechanisms. A fine-mist sprayer forces a thin liquid through a small swirl orifice to produce an even mist — the right choice for toners, facial mists and body sprays. A treatment or lotion pump delivers a set dose of a thicker product, such as a serum, lotion or cream, with each stroke.
Output is matched to the product: a treatment pump might deliver a tenth of a milliliter of serum, a lotion pump several milliliters of body cream. A dip tube reaches the base so the bottle empties, and the neck gasket seals the pump to the bottle.
Applications & Industries
We supply pumps and sprayers for toners and facial mists, serums and treatment products, lotions and emulsions, fragrances and body sprays, hair and scalp products, cleansers and micellar waters, and sun-care lotions. Glass bottles with a treatment pump are standard in mid- and high-end skincare, while fine-mist sprayers serve everything from room sprays to setting sprays. Spa and professional ranges use larger lotion pumps on back-bar sizes.
Design & Construction
Each pump combines an actuator, stem, spring, piston, housing, gasket and dip tube, fitted with a screw collar or an FEA 15 crimp ferrule. Mist sprayers handle low-viscosity liquids; treatment and lotion pumps meter a set dose suited to the product’s thickness. Metal-free versions keep the spring out of the product path for sensitive formulas. Overcaps, clear or colored shrouds, metallized collars and custom actuators complete the look.
Filling, Sealing & Use
Match the pump to the neck finish and the product viscosity, and cut the dip tube to the bottle height so the pump primes quickly and empties the bottle. High-alcohol, oil-rich and high-active formulas need gasket and housing materials chosen for them. Lockable actuators or clips prevent leaks in transit, and pumps can ship fitted or loose. Send us your formula type and bottle and we’ll sample pumps for a priming and output test.
Manufacturing & Customization
Pumps are assembled from multiple injection-molded parts, a spring and a dip tube on automated lines, then function-checked for output and seal. Dose consistency, spray pattern, priming strokes and seal integrity are the key quality checks. We offer custom collar and actuator colors, metallized and matte finishes, printed shrouds and dip tubes cut to your bottle, packed in bulk or pre-fitted to our glass bottles.
Customization
Build the Complete Package
We specify the container, closure, decoration and transit packing as one package, so every part fits and arrives ready for your filling line.
Dimensions & Form
Choose from standard sizes or request a custom capacity. We supply drawings with tolerances, label panel dimensions and nominal and brimful capacity.
Interfaces & Components
We match caps, liners, pumps, droppers and stoppers to the neck finish and check the seal against your contents and filling process.
Material & Finish
Flint, amber and colored glass, with frosting, spray coating, screen printing, hot stamping or labels. Material documentation is available on request.
Protective Packing
Partitioned cartons, layer pads or bulk pallets, with shipping marks and pallet patterns planned for your route and warehouse.
Applications
Potential Applications for Fine-Mist Sprayers and Treatment Pumps
Typical markets and uses. Tell us your contents, filling process and storage conditions and we will recommend the right model and components.
Toners and facial mistsSerums and treatmentsLotions and emulsionsFragrance and body spraysHair and scalp productsCleansers and micellar waterSun care
Stock Models & Custom Development
We confirm availability of the standard model, and review any changes to size, color, decoration or tooling for feasibility and lead time.
Samples & Specifications
We send samples and specification sheets so you can check dimensions, component fit and finish before you place the order.
Packing & Shipping
Your quotation covers packing design, shipping route, Incoterms and export documents, so landed cost is clear from the start.
Bulk Quote
Request a Quote for Fine-Mist Sprayers and Treatment Pumps
Tell us the quantity, specifications and destination. We will reply with pricing, lead time, sample options and technical data for your chosen model.
